At Hayne Architects, one of the most common points of confusion we encounter during the early stages of a project is the land survey. Clients are often surprised when we say, “Before we can draw anything, we need a current survey.”

 So let’s break it down:

What is a land survey, and why is it so critical to your project’s success?

What Is a Land Survey?

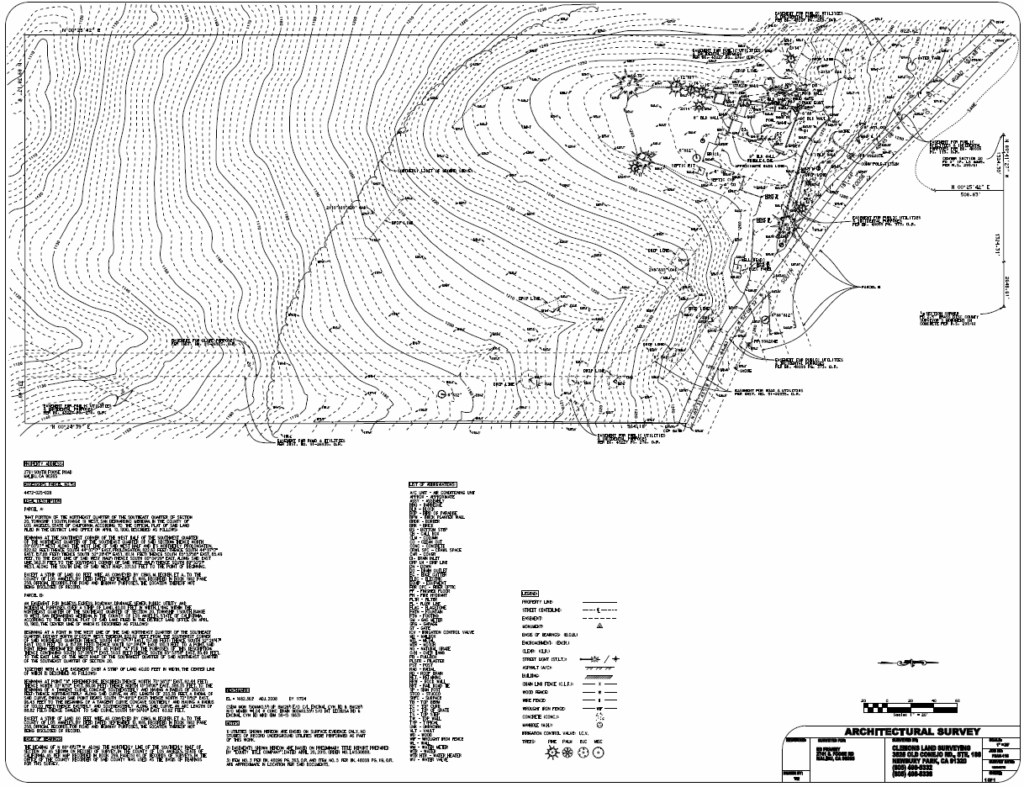

A land survey is a precise, legal mapping of your property completed by a licensed surveyor. It typically documents:

• Property boundaries
• Easements and setbacks
• Topography (slopes, elevation changes)
• Structures, fences, walls, and utilities (existing conditions)

Think of it as the official baseline that everyone — architects, engineers, planners, and contractors — relies on to design legally, accurately, and efficiently.

Why Is It So Important?

1. We Can’t Design in a Vacuum.Without a current survey, we don’t know exactly where your property begins and ends. This makes it impossible to confidently site a new home, addition, or even a fence. A survey ensures we’re designing within your legal rights — and not infringing on a neighbor’s land or setback limits.
2. Code and Permit Requirements Depend on It.City planners and building departments often require surveys as part of the permit process — especially for projects near property lines, slopes, or easements. Skipping this step early can stall your project later.
3. Topography Drives Design Decisions.Especially in hillside areas or coastal zones, the slope of the land affects everything — from how we position your home for the best views and light, to how we calculate grading and drainage. A topographic survey lets us design smarter and avoid costly grading surprises during construction.
4. It Reduces Legal Risk.Property line disputes can lead to delays, stop work orders, or even lawsuits. A proper survey gives you legal clarity and peace of mind.
5. It Saves You Time and Money in the Long Run.While some clients initially see a survey as an extra cost, it’s far more expensive to redesign or re-permit a project that was based on bad or outdated information. A current, accurate survey is one of the best investments you can make at the start of your project.

When Do You Need a Survey?

If you’re planning any of the following, chances are you’ll need a current survey:

• A new home or major addition
• Site work, retaining walls, or grading
• Pool or ADU (Accessory Dwelling Unit) placement
• Permitting for construction near setbacks or easements
• Any work near a property line

At Hayne Architects, we’ll always advise you when a survey is needed and can refer trusted licensed surveyors to get it done right.

You wouldn’t build a house without a foundation — so don’t start your design without a solid survey. It’s not just a map — it’s the backbone of a successful project.
